IS/ISR單級單吸離心泵結構圖及結構說明
時間：2014-1-4 來源：揚子江泵業 瀏覽數：1839
IS/ISR單級單吸離心泵概述：
該系列產品包括了ISO2858規定的全部40個型號，通過切割葉輪和變速可獲得267種性能，能適應各行各業的供水需要。嚴格按照ISO2858，意味著合理的特性曲線。IS系列單級泵與其它單位生產的IS單級泵區別是工作壓力1.6MPa，泵體泵蓋靜壓力試驗為2.4MPa。
本系列泵是單級單吸懸臂式離心泵，供汲送清水及物理化學性質類似于水不含固體顆粒的液體之用。IS型泵介質溫度適用于80℃以下；ISR型泵適用于輸送130℃以下熱水；ISY型泵用于輸送汽油，柴油等輕油
IS/ISR單級單吸離心泵用途：
IS/ISR單級單吸離心泵適用于工業和民用建筑業，如冶金、電站、紡織、化工、印染、陶瓷、橡膠、采暖、余熱利用、空調等。
IS/ISR單級單吸離心泵產品特點：
1、IS/ISR型臥式單級單吸清水離心泵根據國際標準ISO2858所規定的性能和尺寸設計的，主要由泵體、泵蓋、葉輪、軸、密封環、軸套及懸架軸承不見等組成。
2、IS/ISR型臥式單級單吸清水離心泵的泵體和泵蓋部分，是從葉輪背面處剖分的，即通常所說的后開門結構形式。其優點是檢修方便，檢修時不動泵體，吸入管路，排出管路和電動機，只需拆下加長聯軸器的中間聯接件，即可退出轉子部分進行檢修。
3、泵的殼體(即泵體和泵蓋)構成泵的工作室。葉輪、軸和滾動軸承等為泵的轉子。懸架軸承部件支撐著泵的轉子部分，滾動軸承受泵的徑向力和軸向力。
4、為了平衡泵的軸向力，大多數泵的葉輪前、后均設有密封環，并在葉輪后蓋板上設有平衡孔，由于有些泵軸向力不大，葉輪背面未設密封環和平衡孔。
5、泵的軸向密封環是由填料壓蓋，填料環和填料等組成，以防止進氣或大量漏水。泵的葉輪如有平衡，則裝有軟填料的空腔與葉輪吸入口相通，如葉輪入口處液體處于真空狀態，則很容易沿著軸套表面進氣，故在填料腔內裝有填料環通過泵蓋上的小孔，將泵室內壓力水引至填料環進行密封。泵的葉輪如沒有平衡孔，由于葉輪背面液體壓力大于大氣壓，因而不存在漏氣問題，故可不裝填料環。
6、為避免軸磨損，在軸通過填料腔的部位裝有軸套保護。軸套與軸之間準有O型密封圈，以防止沿著配合表面進氣或漏水。
7、泵的傳動方式是通過加長彈性聯軸器與電動機聯接的，泵的旋轉方向，從驅動端看，為順時針方向旋轉。

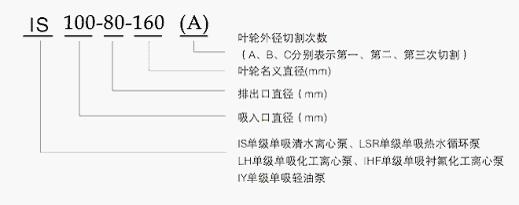

IS/ISR單級單吸離心泵型號意義：

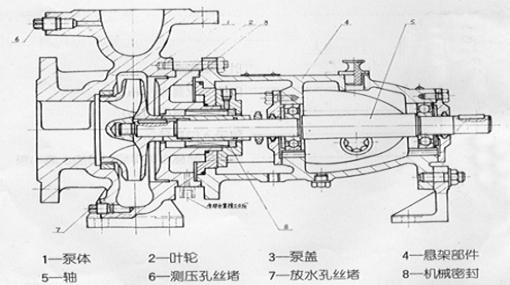

IS/ISR單級單吸離心泵結構圖及結構說明：
ISR系列單級單吸熱水離心泵的主要零件有泵體、葉輪、泵蓋、懸架部件，機械密封部件、軸等。該系列泵為后開門結構，其優點是轉子部件檢修或更換無須拆卸管道，轉子部件由懸架支撐哲（請參考ISR泵結構圖）。泵軸向力的平衡，軸向力較大的泵，葉輪設有平衡孔，其余軸向力由軸承承受。軸封形式采用不平衡單端面機械密封，軸封室外設有水冷卻套，可以通過泵側面1/4管接口接通外來冷水，對軸封進行冷卻。傳動方式，泵的傳動是通過聯軸器與電機直聯。從傳動方向看，泵為順時針旋轉。

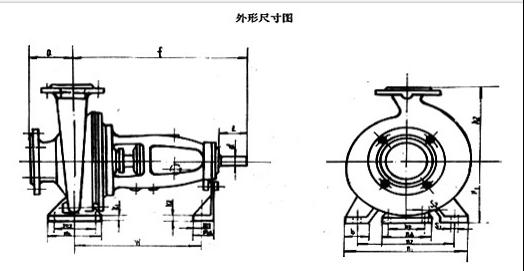

IS/ISR單級單吸離心泵外形尺寸圖：
IS/ISR單級單吸離心泵基本參數：
|
型號 |
葉輪 |
流量 |
揚程 |
轉速 |
效率 |
必需汽蝕余量 |
軸功率 |
配用電機 |
|
|
(M3/h) |
(L/S) |
||||||||
|
50-32-125 |
O |
12.5 |
3.47 |
20 |
2900 |
60 |
2 |
1.13 |
90L-2/2.2 |
|
A |
11.9 |
3.31 |
18.2 |
58 |
2 |
1.02 |
|||
|
B |
11.2 |
3.1 |
15.9 |
56 |
2 |
0.86 |
90S-2/1.1 |
||
|
C |
10.4 |
2.88 |
13.8 |
54 |
2 |
0.72 |
802-2/1.1 |
||
|
50-32-125(J) |
O |
6.3 |
1.74 |
5 |
1450 |
54 |
2 |
0.16 |
801-4/0.55 |
|
A |
6 |
1.67 |
4.6 |
52 |
2 |
0.14 |
|||
|
B |
5.6 |
1.56 |
4 |
50 |
2 |
0.12 |
|||
|
C |
5.2 |
1.45 |
3.5 |
48 |
2 |
0.1 |
|||
|
50-32-160 |
O |
12.5 |
3.47 |
32 |
2900 |
54 |
2 |
2.02 |
100L-2/3 |
|
A |
11.4 |
3.16 |
26.6 |
52 |
2 |
1.59 |
|||
|
B |
10.1 |
2.81 |
21 |
50 |
2 |
1.16 |
90L-2/2.2 |
||
|
C |
9 |
2.51 |
16.7 |
45 |
2 |
0.91 |
90S-2/1.5 |
||
|
50-32-160(J) |
O |
6.3 |
1.75 |
8 |
1450 |
48 |
2 |
0.29 |
801-4/0.55 |
|
A |
5.7 |
1.59 |
6.7 |
45.5 |
2 |
0.23 |
|||
|
B |
5.1 |
1.42 |
5.3 |
42 |
2 |
0.17 |
|||
|
C |
4.6 |
1.26 |
4.2 |
38 |
2 |
0.14 |
|||
|
50-32-200 |
O |
12.5 |
3.47 |
50 |
2900 |
48 |
2 |
3.54 |
132S1—2/5.5 |
|
A |
12.1 |
3.37 |
47 |
47 |
2 |
3.3 |
|||
|
B |
11.7 |
3.23 |
43.2 |
46.2 |
2 |
2.96 |
112M-2/4 |
||
|
C |
10.9 |
3.02 |
37.7 |
45.2 |
2 |
2.47 |
|||
|
50-32-200(J) |
O |
6.3 |
1.74 |
12.5 |
1450 |
42 |
2 |
0.51 |
802-4/0.75 |
|
A |
6.1 |
1.7 |
11.8 |
41.5 |
2 |
0.47 |
|||
|
B |
5.9 |
1.63 |
10.8 |
40.7 |
2 |
0.42 |
|||
|
C |
5.5 |
1.52 |
9.4 |
39.5 |
2 |
0.36 |
801-4/0.55 |
||
|
50-32-250 |
O |
12.5 |
3.47 |
80 |
2900 |
38 |
2 |
7.16 |
160M1-2/11 |
|
A |
11.6 |
3.22 |
68.9 |
37.5 |
2 |
5.8 |
|||
|
B |
10.8 |
3 |
59.7 |
36.3 |
2 |
4.84 |
|||
|
C |
10 |
2.78 |
51.2 |
35 |
2 |
3.98 |
132S2-2/7.5 |
||
|
50-32-250(J) |
O |
6.3 |
1.74 |
20 |
1450 |
32 |
2 |
1.07 |
90L-4/1.5 |
|
A |
5 |
1.63 |
17.2 |
31.2 |
2 |
0.88 |
|||
|
B |
5.4 |
1.51 |
14.9 |
30.5 |
2 |
0.73 |
|||
|
C |
5 |
1.4 |
12.8 |
29.5 |
2 |
0.6 |
90S-4/1.1 |
|
65-50-125 |
O |
25 |
6.94 |
20 |
2900 |
69 |
2.5 |
1.97 |
100L-2/3 |
|
|
A |
23.5 |
6.52 |
17.6 |
67 |
2.4 |
1.68 |
||||
|
B |
21.9 |
6.09 |
15.4 |
62 |
2.3 |
1.48 |
90L-2/2.2 |
|||
|
C |
19.9 |
5.24 |
11.4 |
53 |
2.15 |
1.1 |
||||
|
65-50-125(J) |
O |
12.5 |
3.47 |
5 |
1450 |
64 |
2 |
0.27 |
801-4/0.55 |
|
|
A |
11.7 |
3.26 |
4.4 |
61.5 |
2 |
0.23 |
||||
|
B |
11 |
3.04 |
3.8 |
57 |
2 |
0.2 |
||||
|
C |
9.4 |
2.62 |
2 |
48 |
2 |
0.15 |
||||
|
65-50-160 |
O |
25 |
6.94 |
32 |
2900 |
65 |
2 |
3.35 |
132S1-2/5.5 |
|
|
A |
23.5 |
6.52 |
28.2 |
63 |
2 |
2.86 |
112M-2/4 |
|||
|
B |
21.6 |
6 |
23.9 |
58 |
2 |
2.42 |
||||
|
C |
20.1 |
5.57 |
20.6 |
55 |
2 |
2.05 |
100L-2/3 |
|||
|
65-50-160(J) |
O |
12.5 |
3.47 |
8 |
1450 |
60 |
2 |
0.45 |
802-4/0.75 |
|
|
A |
11.7 |
3.26 |
7 |
58 |
2 |
0.39 |
||||
|
|
B |
10.8 |
3 |
6 |
|
55 |
2 |
0.32 |
801-4/0.55 |
|
C |
10 |
2.79 |
5.2 |
52 |
2 |
0.27 |
|||
|
65-40-200 |
O |
25 |
6.94 |
50 |
2900 |
60 |
2 |
5.67 |
132S2-2/7.5 |
|
A |
23.8 |
6.6 |
45.1 |
59.5 |
2 |
4.91 |
|||
|
B |
22.5 |
6.25 |
40.5 |
59 |
2 |
4.21 |
132S1-2/5.5 |
||
|
C |
21.3 |
5.9 |
36.1 |
57.5 |
2 |
3.64 |
|||
|
65-40-200(J) |
O |
12.5 |
3.47 |
12.5 |
1450 |
55 |
2 |
0.77 |
90S-4/1.1 |
|
A |
11.9 |
3.3 |
11.3 |
55 |
2 |
0.66 |
|||
|
B |
11.3 |
3.13 |
10.1 |
55 |
2 |
0.56 |
|||
|
C |
10.6 |
2.95 |
9 |
55 |
2 |
0.48 |
802-4/0.75 |
||
|
65-40-250 |
O |
25 |
6.94 |
80 |
2900 |
50 |
2 |
10.9 |
160M2-2/15 |
|
A |
23.4 |
6.51 |
70.2 |
49 |
2 |
9.14 |
|||
|
B |
21.9 |
6.07 |
61.1 |
47.6 |
2 |
7.64 |
160M1-2/11 |
||
|
C |
20.5 |
5.69 |
53.7 |
46.3 |
2 |
6.46 |
|||
|
65-40-250 (J) |
O |
12.5 |
3.47 |
20 |
1450 |
46 |
2 |
1.48 |
100L1-4/2.2 |
|
A |
11.7 |
3.25 |
17.6 |
44.8 |
2 |
1.25 |
|||
|
B |
10.9 |
3.04 |
15.3 |
43.8 |
2 |
1.04 |
90L-4/1.5 |
||
|
C |
10.2 |
2.84 |
13.4 |
43 |
2 |
0.87 |
|
65-40-315 |
O |
25 |
6.94 |
125 |
2900 |
50 |
2.5 |
21.3 |
200L1-2/30 |
|
A |
23.3 |
6.48 |
109 |
39 |
2.5 |
17.5 |
180M-2/22 |
||
|
B |
21.9 |
6.08 |
96 |
39.5 |
2.5 |
14.7 |
160L-2/18.5 |
||
|
C |
20.2 |
5.62 |
81.9 |
38.5 |
2.5 |
11.7 |
160M2-2/15 |
||
|
65-40-315 (J) |
O |
12.5 |
3.47 |
32 |
1450 |
37 |
2.5 |
2.94 |
112M-4/4 |
|
A |
11.7 |
3.24 |
27.9 |
36.6 |
2.5 |
2.42 |
|||
|
B |
11 |
3.04 |
24.6 |
36 |
2.5 |
2.02 |
100L2-4/3 |
||
|
C |
10.1 |
2.81 |
21 |
36 |
2.5 |
1.61 |
|||
|
80-65-125 |
O |
50 |
13.9 |
20 |
2900 |
75 |
3 |
3.63 |
132S1-2/5.5 |
|
A |
47.9 |
13.3 |
18.3 |
73 |
3 |
3.27 |
|||
|
B |
43.6 |
12.1 |
15.2 |
69.5 |
3 |
2.59 |
112M-2/4 |
||
|
C |
38.6 |
10.7 |
11.9 |
65.5 |
3 |
1.91 |
100L-2/3 |
||
|
80-65-125 (J) |
O |
25 |
6.94 |
5 |
1450 |
71 |
2.5 |
0.48 |
802-4/0.75 |
|
A |
23.9 |
6.65 |
4.6 |
70 |
2.5 |
0.43 |
|||
|
B |
21.8 |
6.05 |
3.8 |
66 |
2.5 |
0.34 |
801-4/0.55 |
||
|
C |
19.3 |
5.36 |
3 |
62 |
2.5 |
0.25 |
|||
|
80-65-160 |
O |
50 |
13.9 |
32 |
2900 |
73 |
2.5 |
5.97 |
132S2-2/7.5 |
|
A |
46.9 |
13.3 |
28.2 |
71 |
2.5 |
5.07 |
|||
|
B |
43.2 |
12 |
23.9 |
67 |
2.5 |
4.2 |
132S1-2/5.5 |
||
|
C |
40.1 |
11.1 |
20.6 |
64 |
2.5 |
3.52 |
|||
|
80-65-160(J) |
O |
25 |
6.94 |
8 |
1450 |
69 |
2.5 |
0.79 |
90L-4/1.5 |
|
A |
23.5 |
6.52 |
7 |
66.5 |
2.5 |
0.68 |
90S-4/1.1 |
||
|
B |
21.6 |
6 |
6 |
63 |
2.5 |
0.56 |
|||
|
C |
20.1 |
5.57 |
5.2 |
60 |
2.5 |
0.47 |
802-4/0.75 |
|
80-50-200 |
O |
50 |
13.9 |
50 |
2900 |
69 |
2.5 |
9.87 |
160M2-2/15 |
|
A |
46.9 |
13 |
43.4 |
67 |
2.5 |
8.21 |
160M1-2/11 |
||
|
B |
42.7 |
11.9 |
30.4 |
66 |
2.5 |
6.4 |
|||
|
C |
39.2 |
10.9 |
30.6 |
64.5 |
2.5 |
5.09 |
132S2-2/7.5 |
||
|
80-50-200(J) |
O |
25 |
6.94 |
12.5 |
1450 |
65 |
2.5 |
1.31 |
100L1-4/2.2 |
|
A |
23.3 |
6.65 |
10 |
63 |
2.5 |
1.09 |
90L-4/1.5 |
||
|
B |
21.3 |
5.92 |
9.1 |
61.5 |
2.5 |
0.86 |
|||
|
C |
19.6 |
5.45 |
7.7 |
60.5 |
2.5 |
0.68 |
90S-4/1.1 |
||
|
80-50-250 |
O |
50 |
13.9 |
80 |
2900 |
63 |
2.5 |
17.3 |
180M-2/22 |
|
A |
47.2 |
13.1 |
71.3 |
62.6 |
2.5 |
14.6 |
|||
|
B |
44.4 |
12.3 |
63.1 |
62.2 |
2.5 |
12.3 |
160L-2/18.5 |
||
|
C |
39.6 |
10 |
50.2 |
60.8 |
2.5 |
3.9 |
160M2-2/15 |
||
|
80-50-250(J) |
O |
25 |
6.94 |
20 |
1450 |
60 |
2.5 |
2.27 |
100L2-4/3 |
|
A |
23.6 |
8.58 |
17.6 |
58.7 |
2.5 |
1.95 |
|||
|
B |
22.2 |
8.17 |
15.8 |
58 |
2.5 |
1.64 |
100L1-2/2.2 |
||
|
C |
19.8 |
5.5 |
12.6 |
57 |
2.5 |
1.19 |
|||
|
80-50-315 |
O |
50 |
13 |
125 |
2900 |
54 |
2.5 |
31.5 |
200L2-2/37 |
|
A |
46.7 |
13 |
108 |
53.5 |
2.5 |
25.9 |
|||
|
B |
43.8 |
12.2 |
66 |
53 |
2.5 |
21.6 |
200L1-2/30 |
||
|
C |
40.5 |
11.2 |
81.9 |
52.5 |
2.5 |
17.2 |
180M-2/22 |
|
80-50-315(J) |
O |
25 |
8.94 |
32 |
1450 |
52 |
2.5 |
4.19 |
132S-4/5.5 |
|
A |
23.3 |
8.48 |
27.9 |
51.7 |
2.5 |
3.43 |
|||
|
B |
21.9 |
8.08 |
24.8 |
51.4 |
2.5 |
2.85 |
112M-4/4 |
||
|
C |
20.2 |
5.82 |
21 |
51.1 |
2.5 |
2.26 |
|||
|
100-80-125 |
O |
100 |
27.8 |
20 |
2900 |
78 |
4.5 |
7 |
160M1-2/11 |
|
A |
94.2 |
26.2 |
17.8 |
73 |
4.4 |
6.25 |
|||
|
B |
89.2 |
24.8 |
15 9 |
70 |
4.3 |
5.25 |
132S2-2/7.5 |
||
|
C |
79.1 |
22.2 |
12.5 |
64 |
4.2 |
4.22 |
132S1-2/5.5 |
||
|
100-80-125(J) |
O |
50 |
13.9 |
5 |
1450 |
75 |
2.5 |
0.91 |
90L-4/1.5 |
|
A |
47.1 |
13.1 |
4.4 |
72 |
2.5 |
0.79 |
|||
|
B |
44.6 |
12.4 |
4 |
66 |
2.5 |
0.73 |
90S-4/1.1 |
||
|
C |
39.6 |
11 |
3.1 |
61 |
2.5 |
0.55 |
|||
|
100-80-160 |
O |
100 |
27.8 |
32 |
2900 |
78 |
4 |
11.2 |
160M2-2/15 |
|
A |
94.8 |
28.7 |
28.8 |
77.5 |
3.97 |
9.58 |
|||
|
B |
89 |
24.7 |
25.4 |
76.6 |
3.77 |
8.02 |
160M1-2/11 |
||
|
C |
84.4 |
23.4 |
22.8 |
76 |
3.65 |
6.89 |
|||
|
100-80-160(J) |
O |
50 |
13.9 |
8 |
1450 |
75 |
2.5 |
1.45 |
100L1-4/2.2 |
|
A |
47.4 |
13.2 |
7.2 |
76 |
2.34 |
1.22 |
|||
|
B |
44.5 |
12.4 |
6.3 |
73.3 |
2.25 |
1.05 |
90L-4/1.5 |
||
|
C |
42.2 |
11.7 |
5.7 |
73 |
2.17 |
0.9 |
|
100-65-200 |
O |
100 |
27.8 |
50 |
2900 |
76 |
3.6 |
17.9 |
180M2-2/22 |
|
|
A |
94.1 |
26.1 |
44.2 |
|
75.5 |
3.45 |
14.8 |
|
|
|
B |
89.1 |
24.7 |
39.7 |
|
74.5 |
3.35 |
12.9 |
160L-2/18.5 |
|
|
C |
84.2 |
23.4 |
35.4 |
|
73 |
3.25 |
11.1 |
160M-2/15 |
|
100-65-200(J) |
O |
50 |
13.9 |
12.5 |
1450 |
73 |
2 |
2.33 |
112M-4/4 |
|
|
A |
47 |
13.1 |
11.1 |
|
72.7 |
2 |
1.95 |
100L2-4/3 |
|
|
B |
44.6 |
12.4 |
9.9 |
|
72.3 |
2 |
1.67 |
|
|
|
C |
42.1 |
11.7 |
8.9 |
|
72 |
2 |
1.41 |
100L1-4/2.2 |
|
100-65-250 |
O |
100 |
27.8 |
87 |
2900 |
72 |
3.8 |
30.3 |
200L2-2/37 |
|
|
A |
93.3 |
25.9 |
69.7 |
|
69.3 |
3.7 |
25.6 |
|
|
|
B |
87.1 |
24.2 |
60.6 |
|
66.1 |
3.6 |
21.8 |
200L1-2/30 |
|
|
C |
80.8 |
22.4 |
52.2 |
|
62.8 |
3.5 |
18.1 |
|
|
100-65-250(J) |
O |
50 |
13.9 |
20 |
1450 |
68 |
2 |
4 |
132S-4/5.5 |
|
|
A |
46.7 |
13 |
17.4 |
|
65.5 |
2 |
3.38 |
|
|
|
B |
43.5 |
12.1 |
15.2 |
|
62 |
2 |
2.9 |
112M-4/4 |
|
|
C |
40.4 |
11.2 |
13.1 |
|
58.5 |
2 |
2.4 |
|
|
100-65-315 |
O |
100 |
27.8 |
125 |
2900 |
66 |
3.6 |
51.6 |
280S-2/75 |
|
|
A |
93.3 |
25.9 |
109 |
|
65.2 |
3.45 |
42.5 |
250M-2/55 |
|
|
B |
87.6 |
24.3 |
96 |
|
64.5 |
3.32 |
35.5 |
225M-2/45 |
|
|
C |
81 |
22.5 |
81.9 |
|
63 |
3.2 |
28.7 |
200L2-2/37 |
|
100-65-315 (J) |
O |
50 |
13.9 |
32 |
1450 |
63 |
2 |
6.92 |
160M-4/11 |
|
|
A |
46.7 |
13 |
27.9 |
|
62.8 |
2 |
5.64 |
|
|
|
B |
43.8 |
12.2 |
24.6 |
|
62.7 |
2 |
4.67 |
132M-4/7.5 |
|
|
C |
40.5 |
11.2 |
21 |
|
61.5 |
2 |
3.76 |
132S-4/5.5 |
|
125-80-160 |
Z |
174 |
48.4 |
38 |
2900 |
80 |
5.6 |
22.6 |
200L1-2/30 |
|
|
O |
160 |
44.4 |
32 |
|
80 |
5.6 |
17.5 |
180M-2/22 |
|
|
A |
150 |
41.6 |
28 |
|
78 |
5.6 |
14.7 |
160L-2/15 |
|
|
B |
139 |
38.5 |
24 |
|
76 |
5.6 |
11.9 |
160M-2/15 |
|
125-80-160 (J) |
Z |
87.2 |
24.2 |
9.5 |
1450 |
77 |
2.5 |
2.93 |
112M-4/4 |
|
|
O |
80 |
22.2 |
8 |
|
77 |
2.5 |
2.26 |
100L2-4/3 |
|
|
A |
74.8 |
20.8 |
7 |
|
75 |
2.5 |
1.9 |
100L1-4/2.2 |
|
|
B |
69.3 |
19.2 |
6 |
|
73 |
2.5 |
1.55 |
|
|
125-80-200 |
Z |
175 |
48.7 |
60 |
2900 |
80 |
5.2 |
35.8 |
225M-2/45 |
|
|
O |
160 |
44.4 |
50 |
|
80 |
5.2 |
27.2 |
200L2-2/37 |
|
|
A |
150 |
41.7 |
44 |
|
79 |
5.2 |
22.8 |
200L1-2/30 |
|
|
B |
139 |
38.7 |
38 |
|
78 |
5.2 |
18.5 |
180M-2/22 |
|
125-80-200(J) |
Z |
87.6 |
24.3 |
15 |
1450 |
77 |
2.5 |
4.65 |
132M-4/7.5 |
|
|
O |
80 |
22.2 |
12.5 |
|
77 |
2.5 |
3.54 |
132S-4/5.5 |
|
|
A |
75.1 |
20.8 |
11 |
|
76 |
2.5 |
2.96 |
|
|
|
B |
69.7 |
19.4 |
9.5 |
|
75 |
2.5 |
2.41 |
112M-4/4 |
|
125-80-250 |
Z |
172 |
47.7 |
92 |
2900 |
77 |
4.8 |
55.8 |
280S-2/75 |
|
|
O |
160 |
44.4 |
80 |
|
77 |
4.8 |
45.3 |
250M-2/55 |
|
|
A |
150 |
41.6 |
70 |
|
76 |
4.8 |
37.5 |
225M-2/45 |
|
|
B |
139 |
38.5 |
60 |
|
75 |
4.8 |
30.2 |
200L2-2/37 |
|
125-80-250(J) |
Z |
85.8 |
23.8 |
23 |
1450 |
74 |
2.2 |
6.26 |
160M-4/11 |
|
|
O |
80 |
22.2 |
20 |
|
74 |
2.2 |
5.89 |
132M-4/7.5 |
|
|
A |
74.8 |
20.8 |
17.5 |
|
73 |
2.2 |
4.89 |
132S-4/5.5 |
|
|
B |
69.3 |
19.2 |
15 |
|
72 |
2.2 |
3.93 |
|
|
125-80-315 |
Z |
167 |
46.4 |
136 |
2900 |
73 |
4.5 |
84.7 |
315S-2/110 |
|
|
O |
160 |
44.4 |
125 |
|
73 |
4.5 |
74.6 |
280M-2/90 |
|
|
A |
153 |
42.4 |
114 |
|
72 |
4.5 |
65.9 |
280S-2/75 |
|
|
B |
145 |
40.3 |
103 |
|
71 |
4.5 |
57.4 |
|
|
|
C |
137 |
38.1 |
92 |
|
70 |
4.5 |
49.1 |
|
|
125-80-315(J) |
Z |
82.5 |
22.9 |
34 |
1450 |
70 |
2.1 |
10.9 |
160L-4/15 |
|
|
O |
80 |
22.2 |
32 |
|
70 |
2.1 |
9.96 |
|
|
|
A |
75.5 |
21 |
28.5 |
|
69 |
2.1 |
8.49 |
160M-4/11 |
|
|
B |
71.8 |
19.9 |
25.8 |
|
68 |
2.1 |
7.4 |
|
|
|
C |
67.8 |
18.8 |
23 |
|
67 |
2.1 |
6.34 |
132M-4/7.5 |
|
125-80-400 |
Z |
87.6 |
23.2 |
60 |
1450 |
63 |
2 |
22.7 |
200L-4/30 |
|
|
O |
80 |
22.2 |
50 |
|
63 |
2 |
17.3 |
180L-4/22 |
|
|
A |
75.1 |
20.8 |
44 |
|
62 |
2 |
14.5 |
180M-4/18 |
|
|
B |
69.7 |
19.4 |
38 |
|
61 |
2 |
11.8 |
160L-4/15 |
|
125-100-200 |
O |
200 |
55.5 |
50 |
2900 |
81 |
4.5 |
33.6 |
225M-2/45 |
|
|
A |
185 |
51.4 |
42.9 |
|
78 |
4.5 |
27.7 |
220L2-2/37 |
|
|
B |
172 |
47.8 |
37.1 |
|
75 |
4.5 |
23.2 |
200L1-2/30 |
|
|
C |
157 |
43.7 |
31 |
|
71 |
4.5 |
18.7 |
|
|
125-100-200 (J) |
O |
100 |
27.8 |
12.5 |
1450 |
76 |
2.5 |
4.48 |
132M-4/7.5 |
|
|
A |
92.6 |
25.7 |
10.7 |
|
73.5 |
2.5 |
3.68 |
132S-4/5.5 |
|
|
B |
86.1 |
23.9 |
9.3 |
|
70 |
2.5 |
3.11 |
|
|
|
C |
78.7 |
21.9 |
7.7 |
|
66 |
2.5 |
2.51 |
112M-4/4 |
|
125-100-250 |
O |
200 |
55.5 |
80 |
2900 |
78 |
4.2 |
55.9 |
280S-2/75 |
|
|
A |
187 |
51.9 |
69.7 |
|
78.2 |
4.08 |
45.3 |
|
|
|
B |
174 |
48.4 |
60.6 |
|
78 |
4 |
36.9 |
250M-2/55 |
|
|
C |
162 |
44.9 |
52.2 |
|
77.8 |
3.9 |
29.5 |
225M-2/45 |
|
125-100-250 (J) |
O |
100 |
27.8 |
20 |
1450 |
76 |
2.5 |
7.17 |
160M-4/11 |
|
|
A |
93.9 |
25.9 |
17.4 |
|
76 |
2.5 |
5.83 |
|
|
|
B |
87.1 |
24.2 |
15.2 |
|
75.5 |
2.5 |
4.76 |
132M-4/7.5 |
|
|
C |
80.8 |
22.4 |
13.1 |
|
75.2 |
2.5 |
3.82 |
132S-4/5.5 |
|
125-100-315 |
O |
200 |
55.5 |
125 |
2900 |
75 |
4.5 |
90.8 |
315S-2/110 |
|
|
A |
187 |
52.1 |
110 |
|
73.3 |
4.7 |
76.4 |
|
|
|
B |
174 |
48.2 |
94.8 |
|
70.8 |
4.5 |
63.5 |
280M-2/90 |
|
|
C |
161 |
44.7 |
80.9 |
|
68.4 |
4.2 |
51.8 |
280S-2/75 |
|
125-100-315 (J) |
O |
100 |
27.8 |
32 |
1450 |
73 |
2.5 |
11.9 |
160L-4/15 |
|
|
A |
93.7 |
26 |
28.1 |
|
71.5 |
2.5 |
10 |
|
|
|
B |
87.1 |
24.2 |
24.3 |
|
69.5 |
2.5 |
8.28 |
|
|
|
C |
80.4 |
22.3 |
20.7 |
|
67 |
2.5 |
6.77 |
160M-4/11 |
|
125-100-400 |
O |
100 |
27.8 |
50 |
1450 |
65 |
2.5 |
21 |
200L-4/30 |
|
|
A |
93.9 |
26.1 |
44.1 |
|
65 |
2.5 |
17.4 |
180L-4/22 |
|
|
B |
87.1 |
24.2 |
37.9 |
|
64.7 |
2.5 |
13.9 |
180M-4/18.5 |
|
|
C |
81 |
22.5 |
32.8 |
|
64.4 |
2.5 |
11.2 |
160L-4/15 |
|
150-125-250 |
O |
200 |
55.5 |
20 |
1450 |
81 |
3 |
13.5 |
180M-4/18.5 |
|
|
A |
187 |
51.7 |
17.4 |
|
77 |
3 |
11.5 |
160L-4/15 |
|
|
B |
171 |
47.4 |
14.6 |
|
75 |
3 |
9.06 |
|
|
|
C |
159 |
44.1 |
12.6 |
|
71 |
3 |
7.7 |
160M-4/11 |
|
150-125-315 |
O |
200 |
55.5 |
32 |
1450 |
79 |
2.5 |
22.1 |
200L-4/30 |
|
|
A |
186 |
51.2 |
27.8 |
|
78.8 |
2.5 |
18 |
180L-4/22 |
|
|
B |
174 |
48.2 |
24.1 |
|
77.7 |
2.5 |
14.7 |
180M-4/18.5 |
|
|
C |
161 |
44.6 |
20.6 |
|
76.7 |
2.5 |
11.8 |
160L-4/15 |
|
150-125-400 |
O |
200 |
55.5 |
50 |
1450 |
75 |
2.8 |
36.3 |
225M-4/45 |
|
|
A |
186 |
51.8 |
43.5 |
|
74.5 |
2.65 |
29.4 |
|
|
|
B |
174 |
48.2 |
38 |
|
74 |
2.5 |
24.4 |
225S-4/37 |
|
|
C |
161 |
44.6 |
32.3 |
|
72.8 |
2.35 |
19.4 |
220L-4/30 |
|
200-150-250 |
O |
400 |
111 |
22 |
1450 |
82.5 |
3.5 |
29.1 |
225S-4/37 |
|
|
A |
371 |
103 |
18.9 |
|
80 |
3.4 |
23.9 |
200L-4/30 |
|
|
B |
345 |
95.8 |
16.4 |
|
77.5 |
3.3 |
19.8 |
|
|
|
C |
317 |
88.1 |
13.8 |
|
74 |
3.2 |
16.2 |
180L-4/22 |
|
200-150-315 |
O |
400 |
111 |
32 |
1450 |
82 |
3.5 |
42.5 |
250M-4/55 |
|
|
A |
366 |
102 |
26.7 |
|
76.2 |
3.35 |
35 |
225M-4/45 |
|
|
B |
330 |
91.7 |
21.8 |
|
69.3 |
3.2 |
28.3 |
225S-4/37 |
|
|
C |
303 |
84.1 |
18.3 |
|
64 |
3.1 |
23.6 |
200L-4/30 |
|
200-150-400 |
O |
400 |
111 |
50 |
1450 |
81 |
3.8 |
67.2 |
280M-4/90 |
|
|
A |
373 |
104 |
43.4 |
|
79.8 |
3.6 |
55.2 |
280S-4/75 |
|
|
B |
348 |
96.8 |
37.9 |
|
78.6 |
3.4 |
45.8 |
|
|
|
C |
324 |
90 |
32.8 |
|
77 |
3.25 |
37.6 |
250M-4/55 |
感謝您訪問我們揚子江泵業的網站www.nwarestoration.com，如有任何水泵疑問我們一定會盡心盡力為您提供優質的服務.
